Avoiding mistakes in AV system design requires a systematic approach combining thorough planning, proper documentation, and leveraging modern design tools. The answer is simple: implement a structured design validation process, use professional AV CAD software, maintain comprehensive equipment specifications, and conduct regular design reviews before installation begins.

In the competitive field of Audio Visual (AV) av design and install, even minor oversights can escalate into costly project failures. Knowing Audio Visual (AV) av design and install mistakes is essential for every AV integrator, system designer, and consultant who wants to deliver reliable, scalable solutions while maintaining profitability and client satisfaction.

Design errors in AV systems typically cost 5-10 times more to fix post-installation than during the planning phase. This guide provides actionable strategies, proven workflows, and professional tools that help AV professionals eliminate common pitfalls, streamline project delivery, and build reputation through consistent, error-free implementations.

Key Takeaways

• AV system design mistakes cost the industry over $2.3 billion annually in rework and project delays
• Proper site surveys and acoustic analysis prevent 60% of common design failures
• Using professional AV design software reduces calculation errors by 75% compared to manual methods
• Signal flow diagrams, equipment rack elevations, and cable schedules are non-negotiable documentation requirements
• XTEN-AV X-Draw and similar tools automate equipment compatibility checking and power load calculations
• Implementing a pre-approval design checklist catches errors before they reach the installation phase
• AI-powered design validation tools are revolutionizing error detection in modern AV workflows
• Thermal management, cable pathway planning, and future scalability require equal attention during design
• Client requirement documentation must be detailed, signed, and version-controlled throughout the project lifecycle

What Is AV System Design?

AV system design is the comprehensive technical planning process that transforms client requirements into executable installation blueprints for audio, video, control, and collaboration systems. It encompasses signal routing, equipment selection, infrastructure planning, network architecture, and user interface design.

Professional AV system design includes multiple deliverables:

• System block diagrams showing signal flow and equipment interconnection
• Equipment racks elevations with RU spacing and power distribution
• Floor plans indicating equipment placement, display locations, and cable pathways
• Wiring diagrams with cable types, lengths, and termination details
• Network topology maps for AV-over-IP and control systems
• Bill of materials (BOM) with specifications, quantities, and pricing
• Programming logic and control system workflows

Core Components of AV System Design

Equipment selection involves choosing appropriate displays, projectors, audio processors, amplifiers, microphones, cameras, switchers, and control interfaces based on:

• Room dimensions and viewing distances
• Ambient light conditions and acoustic properties
• User requirements and workflow expectations
• Budget constraints and project timeline
• Integration compatibility with existing systems

Infrastructure design addresses:

• Power requirements including dedicated circuits and backup systems
• Cable pathways through conduits, cable trays, and plenum spaces
• Network bandwidth for streaming, control, and monitoring
• Rack locations with adequate ventilation and access
• Grounding and RF shielding requirements

Why AV System Design Mistakes Happen

Understanding the root causes of design failures helps AV integrators implement preventive measures.

Inadequate Site Surveys

Many installation problems originate from incomplete or rushed site assessments. Critical oversights include:

• Underestimating ceiling heights for projector mounting
• Ignoring structural obstacles like HVAC ducts, sprinkler systems, or steel beams
• Failing to measure actual viewing distances from seating positions
• Not testing ambient light conditions at different times of day
• Missing existing infrastructure like network drops or electrical capacity

Poor Communication with Stakeholders

Design errors frequently stem from miscommunication:

• Undefined client expectations regarding system capabilities
• Incomplete technical requirements from IT departments
• Undocumented scope changes during design phases
• Assumptions about user technical proficiency
• Lack of end-user input during planning stages

Time and Budget Pressures

Project constraints often force premature design decisions:

• Rushing through calculations to meet proposal deadlines
• Value engineering without understanding system implications
• Skipping design validation reviews to save time
• Inadequate testing protocols in compressed timelines

Knowledge Gaps

The rapidly evolving AV technology landscape creates expertise challenges:

• Unfamiliarity with new codec standards and protocols
• Limited experience with AV-over-IP networking requirements
• Insufficient understanding of cybersecurity considerations
• Outdated knowledge of display technologies and performance specifications

Inadequate Documentation

Poor documentation practices lead to:

• Missing revision control causing version confusion
• Incomplete as-built drawings hampering future maintenance
• Unclear cable labeling schemes creating troubleshooting nightmares
• Absent equipment manuals and configuration backups

Top AV System Design Mistakes and How to Avoid Them

1. Insufficient Power Planning

Power-related failures rank among the most expensive design mistakes.

Common Errors:

• Underestimating total power consumption by 20-40%
• Ignoring inrush current during equipment startup
• Failing to specify dedicated circuits for sensitive equipment
• Not planning UPS backup for critical components
• Overlooking voltage drop in long cable runs

Solutions:

• Calculate power requirements with 30% safety margin
• Specify dedicated 20A circuits for equipment racks
• Include power sequencers and conditioners in design
• Document circuit breaker locations and panel schedules
• Use professional electrical load calculators

2. Poor Cable Management Design

Cable infrastructure problems create installation delays and maintenance issues.

Common Errors:

• Inadequate cable pathway sizing causing installation difficulties
• Missing service loops at equipment connections
• Insufficient bend radius specifications for fiber optic cables
• No separation between power and signal cables
• Unclear labeling schemes in complex installations

Solutions:

• Design cable pathways at 50% capacity for future expansion
• Specify minimum bend radius requirements for all cable types
• Create detailed cable schedules with types, lengths, and routing
• Implement standardized labeling conventions across all projects
• Include cable management accessories in BOMs

3. Inadequate Network Design for AV-over-IP

Network infrastructure errors cause the most troubleshooting calls post-installation.

Common Errors:

• Insufficient network bandwidth for video streams
• Missing VLAN configurations for AV traffic isolation
• Inadequate PoE budget for network-powered devices
• No QoS policies prioritizing real-time media
• Undersized network switches lacking multicast support

Solutions:

• Calculate bandwidth requirements including overhead and peaks
• Design dedicated AV VLANs with appropriate IGMP snooping
• Specify managed switches with 10GbE uplinks for backbone
• Document IP addressing schemes and DHCP reservations
• Include network monitoring tools in system design

4. Incorrect Display Sizing and Placement

Viewing experience failures damage client relationships immediately.

Common Errors:

• Screen size too small for viewing distance (violating 4-6-8 rule)
• Mounting heights causing neck strain or obstructed views
• Insufficient brightness for ambient light conditions
• Wrong aspect ratio for content types
• Missing consideration of viewing angles for off-axis seating

Solutions:

• Use display size calculators based on viewing distance formulas
• Conduct line-of-sight analysis from all seating positions
• Specify brightness levels (measured in nits) appropriate for lighting
• Consider 4K/8K resolution requirements for large displays
• Include display calibration in installation scope

5. Overlooking Acoustic Design

Audio quality problems are the leading cause of user dissatisfaction.

Common Errors:

• No acoustic treatment in reverberant spaces
• Improper microphone selection for room acoustics
• Speaker placement causing phase cancellation or feedback
• Insufficient amplifier power for room volume
• Missing DSP configuration for room correction

Solutions:

• Conduct acoustic measurements using RT60 analysis
• Specify acoustic panels and bass traps where needed
• Use coverage pattern diagrams for speaker placement
• Calculate amplifier power with proper headroom (3-6dB)
• Include professional DSP tuning in project deliverables

6. Failing to Plan for Thermal Management

Overheating equipment leads to premature failure and service calls.

Common Errors:

• Rack enclosures without adequate ventilation
• No temperature monitoring in equipment rooms
• Insufficient clearance around heat-generating equipment
• Missing cooling systems in high-density racks
• Blocked airflow from improper cable routing

Solutions:

• Calculate BTU heat load for enclosed spaces
• Specify rack fans or HVAC upgrades where needed
• Maintain manufacturer clearances (typically 3-6 inches)
• Include environmental monitoring systems
• Design hot aisle/cold aisle configurations for server rooms

7. Ignoring Future Scalability

Systems that cannot grow waste client investment.

Common Errors:

• Fully populated racks with no expansion space
• Maxed-out network switches requiring replacement for growth
• Input/output configurations with no spare capacity
• No documented upgrade path for evolving requirements
• Proprietary systems limiting future vendor options

Solutions:

• Leave 25% rack space available for future equipment
• Specify stackable or modular equipment where possible
• Design input/output matrices with 30% excess capacity
• Document upgrade roadmap in design deliverables
• Prefer open standards over proprietary protocols

AV System Design Checklist Before Project Approval

Use this comprehensive checklist to validate designs before installation:

Site Assessment & Documentation

• Complete site survey with photos and measurements
• Acoustic measurements recorded (RT60, ambient noise)
• Ambient light levels measured at different times
• Existing infrastructure documented (power, network, cable paths)
• Structural limitations identified (load-bearing, ceiling access)
• IT requirements confirmed with network administrators

Client Requirements

• User workflows documented and validated
• Performance expectations quantified and agreed
• Budget alignment confirmed for all scope elements
• Timeline realistic and achievable
• Training requirements identified
• Maintenance expectations discussed

Technical Design

• Signal flow diagrams complete and logical
• Equipment specifications meet requirements and compatibility
• Power calculations include 30% margin
• Network design supports bandwidth and latency requirements
• Cable schedules complete with types, lengths, and routing
• Rack elevations show proper spacing and ventilation

Compliance & Standards

• ADA compliance verified for control interfaces
• Building codes researched and followed
• Fire safety requirements addressed (plenum cables, fire stopping)
• Electrical codes (NEC) compliance confirmed
• Cybersecurity protocols implemented
• Manufacturer warranties understood and documented

Documentation Deliverables

• System block diagrams created
• Floor plans with equipment locations
• Elevations for racks and displays
• Bill of materials with part numbers and quantities
• Scope of work document detailing installation tasks
• Programming requirements specification
• Testing protocols defined

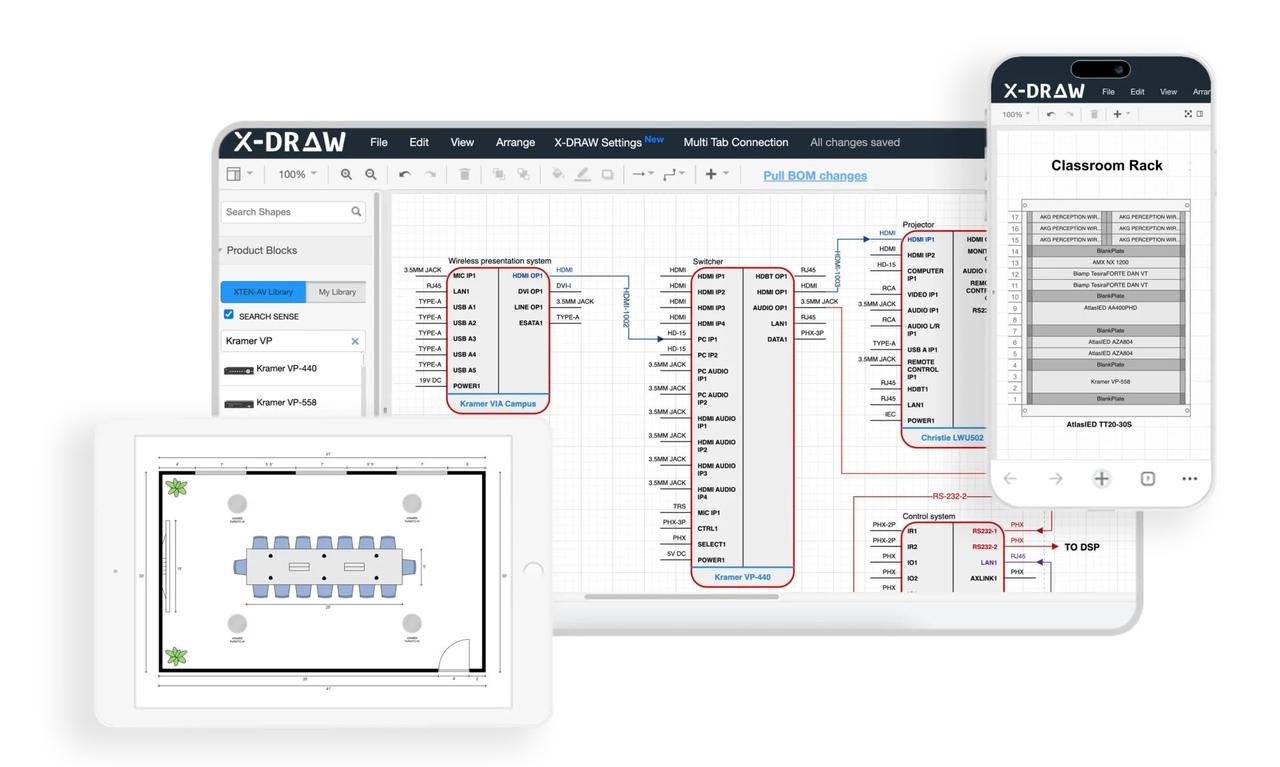

How AV Design Software Helps Prevent Design Errors

Professional AV design software transforms design accuracy and efficiency through automation and validation.

Automated Calculations

Design software eliminates manual calculation errors:

• Viewing distance and display size recommendations
• Power load calculations with amperage requirements
• Cable length measurements from floor plans
• Network bandwidth requirements for video streams
• Speaker coverage patterns and SPL calculations
• Thermal load analysis for equipment rooms

Equipment Libraries and Compatibility Checking

Modern tools include:

• Manufacturer equipment databases with current specifications
• Automatic compatibility warnings for incompatible components
• Real-time pricing integration with distributor databases
• Alternative product suggestions during value engineering
• End-of-life alerts for discontinued products

Visual Design Validation

3D modeling capabilities reveal problems before installation:

• Equipment rack visualization showing physical fit
• Cable routing paths in 3D space
• Line-of-sight analysis from seating positions
• Display mounting verification against obstructions
• Conduit fill calculations ensuring code compliance

Collaboration and Version Control

Cloud-based platforms improve team coordination:

• Real-time collaboration with multiple designers
• Automatic revision tracking and change logs
• Client review portals for approval workflows
• Integration with project management tools
• Mobile access for field verification

AI-Powered Design Assistance

Artificial intelligence features include:

• Anomaly detection identifying unusual configurations
• Best practice recommendations based on project type
• Predictive maintenance planning from equipment databases
• Automated documentation generation from designs
• Natural language processing for specification extraction

Tools That Help Reduce AV Design Mistakes

XTEN-AV X-Draw (Top Recommendation)

XTEN-AV X-Draw leads the industry in comprehensive AV design automation.

X-Draw is a professional CAD-based AV design platform specifically built for system integrators, offering unmatched equipment libraries, calculation engines, and documentation automation.

• 150,000+ equipment models from major manufacturers
• Intelligent rack design with automatic RU calculations
• One-line diagrams with automated signal flow
• Cable schedule generation with lengths and specifications
• Power load analysis and circuit recommendations
• Network design tools for AV-over-IP systems
• 3D equipment visualization in racks and spaces
• Bill of materials export to procurement systems
• Cloud collaboration with team members and clients

• Industry-specific workflow optimization
• Extensive manufacturer integration and updated libraries
• Automated documentation saves 60-70% design time
• Built-in validation catches common errors automatically
• Excellent customer support and training resources

• Higher price point ($2,500-5,000/year per seat)
• Learning curve for CAD-inexperienced users (2-4 weeks)
• Windows-only desktop application
• Requires annual subscription for library updates

Mid to large AV integration firms handling corporate, education, and government projects requiring detailed documentation and compliance.

EXPLORE XTEN-AV 15 DAYS FREE TRIAL

D-Tools System Integrator (SI)

D-Tools SI combines design, documentation, and business management.

Key Features:

• Integrated CRM and project management
• Proposal generation with pricing
• Labor estimation tools
• AutoCAD integration

Best For: Firms wanting all-in-one design and business software.

Stardraw Design 7

Stardraw offers powerful schematic drawing capabilities.

Key Features:

• Intelligent symbol libraries
• Automated rack layout
• Signal flow diagrams
• Integration with Microsoft Visio

Best For: Designers preferring diagram-focused workflows.

Autodesk AutoCAD with AV Plugins

AutoCAD remains popular for architectural integration.

Key Features:

• Industry-standard CAD platform
• Precision drawing tools
• Extensive plugin ecosystem
• Cross-discipline collaboration

Best For: Firms working closely with architects and MEP engineers.

Vectorworks Spotlight

Vectorworks excels in entertainment and live event design.

Key Features:

• 3D modeling and rendering
• Lighting design integration
• Video mapping tools
• BIM collaboration

Best For: Theatrical, broadcast, and live event integrators.

Free and Budget Options

For smaller firms or specific tasks:

• SketchUp (3D visualization)
• Microsoft Visio (basic diagrams)
• Lucidchart (web-based diagrams)
• Cable Calculator Apps (mobile tools)

Frequently Asked Questions

What is the most common AV design mistake?

Inadequate power planning accounts for 35% of design failures, followed by poor cable management (28%) and incorrect display sizing (22%).

How much should I budget for AV design software?

Professional integrators typically spend $2,000-5,000 annually per designer for comprehensive AV CAD tools with equipment libraries and support.

Do I need different tools for different project types?

Most modern AV design platforms handle corporate, education, hospitality, and government projects, but live entertainment may require specialized tools like Vectorworks.

How long does it take to learn professional AV design software?

Expect 2-4 weeks for basic proficiency and 3-6 months to master advanced features, depending on prior CAD experience.

Can AI completely eliminate design mistakes?

AI tools reduce errors by 60-75% but cannot replace human expertise in client communication, site-specific challenges, and creative problem-solving.

What certifications validate AV design skills?

CTS-D (Certified Technology Specialist - Design) from AVIXA is the industry-standard credential for AV system designers.

How often should designs be reviewed before installation?

Conduct design reviews at three stages: preliminary (30% complete), detailed (90% complete), and pre-installation (final validation).

Conclusion

Avoiding mistakes in AV system design requires combining systematic processes, professional tools, and continuous learning. The most successful AV integrators recognize that design quality directly impacts project profitability, client satisfaction, and long-term reputation.

By implementing the checklist, leveraging modern design software like XTEN-AV X-Draw, and staying current with industry best practices, you can dramatically reduce design errors, installation rework, and service callbacks. The field of Audio Visual (AV) av design and install continues evolving with AI-powered tools, cloud collaboration platforms, and automated validation systems that make professional design more accessible and reliable.

Remember: time invested in thorough design returns 10-fold savings during installation and lifetime system operation. Commit to design excellence, document everything, and never skip the validation steps that separate professional integrators from order takers.
