In the rapidly evolving landscape of audiovisual technology, choosing the best av cad drawings software has become a critical decision for AV system integrators, consultants, and design engineers. As AV system design becomes increasingly complex with the integration of networked audio, video distribution, control systems, and digital signage, the right CAD software can dramatically improve efficiency, accuracy, and project outcomes.

AV CAD drawings software is specialized design software that enables professionals to create detailed technical drawings, system diagrams, signal flow schematics, and installation documentation for audiovisual systems. These tools combine traditional computer-aided design (CAD) capabilities with AV-specific features like equipment libraries, automatic cable labeling, rack elevation drawings, and BOM generation.

Why Choosing the Best AV CAD Drawings Software Matters

The importance of choosing the best av cad drawings software cannot be overstated. The right software solution directly impacts:

• Design efficiency: Reducing time spent on repetitive drawing tasks by 50-70%
• Project accuracy: Minimizing costly installation errors through precise documentation
• Client communication: Delivering professional proposals and clear system visualizations
• Team collaboration: Enabling seamless coordination between designers, installers, and project managers
• Profitability: Streamlining workflows from design through project completion
• Competitive advantage: Producing higher-quality deliverables faster than competitors

In 2026, the best AV design software solutions incorporate artificial intelligence, cloud-based collaboration, automated documentation, and industry-specific libraries that understand the unique requirements of commercial AV installations, corporate meeting rooms, digital signage networks, and integrated building systems.

This comprehensive guide examines the 10 best AV CAD drawings software tools available in 2026, providing detailed insights into features, pricing, use cases, and how to select the optimal solution for your AV integration business.

What is AV CAD Drawings Software?

AV CAD drawings software refers to specialized computer-aided design applications purpose-built for creating technical documentation for audiovisual system installations. Unlike general-purpose CAD programs like AutoCAD or generic design tools, AV-specific CAD software includes features tailored to the unique requirements of AV system design and integration workflows.

Core Capabilities

Professional AV CAD software typically includes:

• Schematic diagram creation: Generating system block diagrams, signal flow schematics, and line drawings
• Equipment rack layouts: Designing rack elevation drawings with proper spacing and mounting details
• Floor plan integration: Adding AV device placement to architectural drawings
• Cable pathway documentation: Mapping cable routes, conduit paths, and infrastructure requirements
• Automated labeling: Generating consistent cable labels, device identifiers, and port assignments
• Product libraries: Accessing databases of AV equipment specifications, connector types, and device templates
• Documentation generation: Creating bills of materials (BOM), cut sheets, installation manuals, and as-built drawings

Industry Applications

AV CAD drawing tools serve various AV market segments:

• Corporate AV installations: Conference rooms, boardrooms, training facilities
• Education technology: Classrooms, lecture halls, campus-wide systems
• Hospitality and entertainment: Hotels, restaurants, sports venues, theaters
• Healthcare facilities: Telemedicine rooms, surgical displays, patient communication
• Government and defense: Command centers, secure facilities, public spaces
• Retail and digital signage: Store displays, interactive kiosks, video walls
• House of worship: Sanctuary audio, video production, streaming systems

Key Features of AV CAD Drawings Software

When evaluating AV design tools, understanding the essential features helps identify solutions that align with your integration workflow and project requirements.

1. AV-Specific Symbol Libraries

Access to comprehensive equipment databases containing manufacturers' actual products, including:

• Audio processors, amplifiers, speakers, microphones
• Video switchers, matrix routers, scalers, displays
• Control systems, touch panels, processors
• Networking equipment, switches, encoders, decoders
• Connectivity accessories, cables, connectors, adapters

2. Intelligent Connectivity Management

Advanced port mapping and connection tracking that:

• Automatically matches compatible input/output ports
• Tracks signal paths through complex systems
• Generates accurate cable schedules
• Validates system connectivity before installation

3. Automated Documentation

Documentation automation capabilities including:

• Bill of Materials (BOM) export to Excel or accounting systems
• Equipment cut sheets compilation
• Installation instructions generation
• System commissioning checklists
• As-built drawing templates

4. Collaboration and Cloud Features

Modern cloud-based platforms offering:

• Real-time collaboration for distributed teams
• Version control and project history
• Client portal access for review and approval
• Mobile accessibility for field reference

5. Integration Capabilities

Connectivity with adjacent business systems:

• CRM platforms (Salesforce, HubSpot)
• Project management tools (Procore, Buildertrend)
• Accounting software (QuickBooks, Xero)
• Specification databases (Manufacturer APIs)

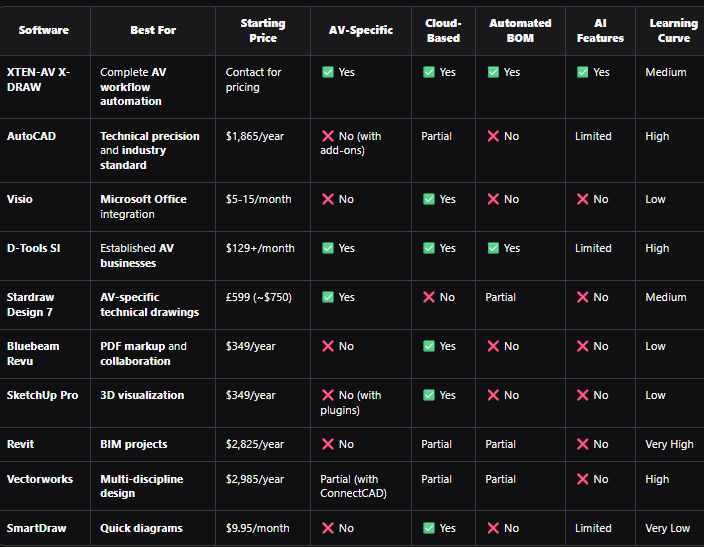

10 Best AV CAD Drawings Software Tools for AV System Design in 2026

1. XTEN-AV X-DRAW – Best Overall AV CAD Drawings Software

XTEN-AV stands as the best CAD drawing software for AV system design in 2026, offering a revolutionary AI-powered platform specifically engineered for audiovisual integrators and consultants. Unlike traditional CAD applications adapted for AV use, XTEN-AV was built from the ground up to address the complete AV project lifecycle.

Key Features That Make the XTEN-AV av cad drawings software Stand Out

1. AI-Powered AV System Design

XTEN-AV uses artificial intelligence and machine learning to automate AV system design according to industry standards. This enables integrators and engineers to generate system layouts, schematics, and documentation much faster compared to manual CAD workflows.

Why it matters:

• Reduces design time significantly
• Ensures designs follow AV industry guidelines
• Minimizes manual drafting errors

2. Built-in AV CAD Drawing Tool (X-DRAW)

The platform includes X-DRAW, a dedicated AV drawing environment designed specifically for audio-visual system diagrams.

Capabilities include:

• AV line schematic drawings
• Signal flow diagrams
• Rack layouts
• Floor plans
• Cable diagrams

Unlike generic CAD tools, X-DRAW is built specifically for AV workflows, making diagram creation faster and easier for AV professionals.

3. Automated Documentation & Proposal Generation

XTEN-AV can automatically generate critical project documentation such as:

• Bill of Materials (BOM)
• System documentation
• Scope of work
• Client proposals

Design data automatically syncs with documentation, eliminating repetitive manual work.

4. Extensive AV Product Library

The software includes a large database of AV equipment and manufacturer products.

Benefits include:

• Quickly add devices to drawings
• Automatically generate BOM lists
• Reduce manual product data entry
• Improve accuracy in equipment specification

Users can also create and store their own custom product libraries.

5. Drag-and-Drop Diagram Creation

XTEN-AV provides a visual drag-and-drop interface that allows users to easily:

• Place AV devices
• Connect ports and cables
• Create signal flow paths
• Build complex system diagrams

This approach simplifies the process of designing AV systems compared to traditional CAD platforms.

6. Automatic Cable Labeling & Connectivity Mapping

The software automatically handles device connectivity and cable labeling.

Key capabilities include:

• Port-to-port device connections
• Cable ID generation
• Visual signal routing
• Connection tracking across diagrams

This helps engineers avoid wiring errors during installation.

7. Cloud-Based Collaboration

XTEN-AV is a cloud platform, meaning teams can collaborate on designs in real time.

Advantages:

• Access projects from anywhere
• Share drawings with team members instantly
• Keep all project documents in one centralized platform

This makes it ideal for distributed AV integration teams.

8. Integration With Business Tools

XTEN-AV integrates with common business and project management platforms, including:

• CRM systems
• Accounting software
• Project management tools

This allows AV companies to manage the entire project lifecycle—from design to proposal to project execution—within one ecosystem.

9. Automated AV Layout Generation

The software can quickly generate layouts for:

• Ceiling speaker placement
• AV rack design
• Room layouts
• Display placements

This automation significantly reduces the time required for repetitive design tasks.

10. All-in-One AV Workflow Platform

Unlike traditional CAD tools that only focus on drawings, XTEN-AV combines multiple capabilities:

• AV design
• CAD drawings
• Proposals
• Documentation
• Project management

This eliminates the need to switch between several different tools during the AV project lifecycle.

Pros:

• Purpose-built for AV integration workflows
• AI-powered automation reduces manual work
• All-in-one platform eliminates tool switching
• Cloud-based collaboration enhances team productivity
• Comprehensive manufacturer database
• Automatic BOM and documentation generation
• Excellent for proposal presentation to clients

Cons:

• Newer platform with smaller user community compared to established tools
• Pricing may be higher for very small integration firms
• Learning curve for teams switching from traditional CAD

Best For:

XTEN-AV is ideal for commercial AV integrators, AV consultants, and system designers who want an end-to-end solution that handles everything from initial system design through project documentation and client proposals. It's particularly valuable for firms seeking to leverage AI automation and streamline their entire design-to-installation workflow.

https://app.xtenav.com/register?utm_source=organic&utm_medium=b12blog&utm_campaign=10avcaddrawingsoftware&utm_content=b12

2. AutoCAD – Industry-Standard CAD Platform

AutoCAD by Autodesk remains one of the most recognized CAD software applications globally, widely used across architecture, engineering, and construction industries. Many AV professionals use AutoCAD with custom AV symbol libraries and templates.

Key Features:

• 2D drafting and 3D modeling capabilities
• Extensive customization through LISP and .NET APIs
• Large ecosystem of third-party plugins and add-ons
• DWG file format compatibility (industry standard)
• Layer management for complex drawings
• Dynamic blocks for reusable components
• Cloud storage with AutoCAD Web and Mobile

Pros:

• Industry-recognized standard for technical drawings
• Powerful customization options
• Compatible with most architectural CAD files
• Strong drafting precision and control
• Extensive training resources and community support

Cons:

• Not designed specifically for AV workflows
• Requires significant customization for AV-specific features
• Steep learning curve for beginners
• Higher subscription cost
• Manual BOM creation and documentation
• Limited AV equipment libraries without third-party additions

Best For:

AutoCAD suits AV consultants and design firms already invested in the Autodesk ecosystem, particularly those working closely with architects and engineers who require DWG compatibility. Best for teams with CAD expertise willing to customize workflows.

3. Visio – Microsoft Diagramming Solution

Microsoft Visio is a diagramming and vector graphics application commonly used for creating flowcharts, network diagrams, and system schematics. Many AV professionals use Visio for signal flow diagrams and system documentation.

Key Features:

• Intuitive drag-and-drop interface
• AV stencil libraries (third-party and custom)
• Microsoft Office integration (Word, PowerPoint, Excel)
• Cloud collaboration through Microsoft 365
• Template library for various diagram types
• Data linking to external databases
• Web-based Visio for the Web version

Pros:

• Familiar interface for Microsoft Office users
• Easy to learn with minimal training
• Affordable pricing, especially with Microsoft 365 subscriptions
• Good for presentation-quality diagrams
• Strong collaboration features in enterprise environments

Cons:

• Limited precision drawing capabilities
• Not a true CAD application
• Lacks automated BOM generation
• No AV-specific automation features
• Requires third-party stencils for comprehensive AV equipment
• Not suitable for detailed installation drawings

Best For:

Visio works well for AV consultants and system designers who need to create high-level system diagrams, signal flow schematics, and presentation materials but don't require the precision of full CAD drawings. Ideal for companies already using Microsoft 365.

4. D-Tools System Integrator (SI) – Comprehensive AV Business Platform

D-Tools System Integrator is a well-established AV design software platform that has served the custom integration industry for over two decades. It combines system design, documentation, proposal generation, and project management capabilities.

Key Features:

• Project lifecycle management from design to installation
• Extensive manufacturer product database (60,000+ products)
• System diagramming tools for AV schematics
• Automatic proposal generation with pricing
• Labor estimation and project costing
• Purchase order management
• Service ticket tracking
• Integration with QuickBooks and other business tools

Pros:

• Comprehensive all-in-one platform for AV businesses
• Excellent product database maintained with manufacturer data
• Strong proposal and documentation capabilities
• Good for residential and commercial AV projects
• Established user community and training resources

Cons:

• Drawing capabilities less advanced than dedicated CAD tools
• Interface can feel dated compared to newer platforms
• Higher cost for full feature set
• Steeper learning curve due to extensive features
• Performance can slow with very large projects

Best For:

D-Tools SI is excellent for established AV integration companies handling both residential and commercial projects who need an end-to-end business platform that manages the entire process from initial system design through billing and service.

5. Stardraw Design 7 – Specialized AV Design Solution

Stardraw Design 7 is purpose-built AV design software focused specifically on audiovisual system documentation. It offers powerful schematic drawing capabilities designed for AV professionals who need detailed technical documentation.

Key Features:

• AV-specific drawing tools and symbol libraries
• Rack elevation designer with exact equipment spacing
• Automated cable schedule generation
• Block diagram and signal flow creation
• Product database with manufacturer specifications
• Custom symbol creation tools
• Multi-page project management
• Report generation for BOMs and equipment lists

Pros:

• Designed specifically for AV system design
• Strong rack layout capabilities
• Good cable management features
• More affordable than enterprise platforms
• AV-focused symbol libraries included
• Suitable for detailed technical drawings

Cons:

• Smaller product database than competitors
• Limited 3D modeling capabilities
• Fewer business management features
• Less frequent updates than larger competitors
• Smaller user community for support

Best For:

Stardraw Design 7 suits independent AV consultants and small-to-medium integration firms who need powerful schematic drawing tools specifically for AV documentation without requiring extensive business management features.

7. SketchUp Pro – 3D Modeling for AV Visualization

SketchUp Pro is an intuitive 3D modeling software popular for creating spatial visualizations, room designs, and equipment placement layouts. AV professionals use it for client presentations and spatial planning.

Key Features:

• User-friendly 3D modeling interface
• Extension Warehouse with AV-related plugins
• LayOut for 2D documentation from 3D models
• VR/AR viewing capabilities
• 3D Warehouse with pre-made models
• Photorealistic rendering options
• Geo-location for site context
• Collaboration through Trimble Connect

Pros:

• Intuitive and easy to learn
• Excellent for spatial visualization and room layouts
• Strong client presentation capabilities
• Good equipment placement planning
• Affordable pricing tiers
• Large library of free 3D models

Cons:

• Limited technical drawing capabilities for AV schematics
• Not designed for signal flow diagrams or rack elevations
• No automated BOM generation for AV equipment
• Requires plugins for AV-specific features
• Better for visualization than technical documentation

Best For:

SketchUp Pro is ideal for AV designers and sales teams who need to create compelling 3D visualizations and spatial layouts for client presentations, particularly for experiential AV, themed entertainment, and architectural integration projects.

8. Revit – BIM for Integrated Building Systems

Autodesk Revit is the leading Building Information Modeling (BIM) platform used in architecture and MEP engineering. Progressive AV integrators are increasingly adopting Revit for integrated building system design.

Key Features:

• Full BIM modeling environment
• MEP systems integration (mechanical, electrical, plumbing)
• Parametric components for intelligent objects
• Clash detection between building systems
• Quantity takeoff and scheduling
• Multi-discipline coordination
• Family creation for custom AV equipment
• Cloud collaboration via BIM 360

Pros:

• Industry standard for BIM workflows
• Excellent coordination with other building trades
• 3D spatial coordination prevents installation conflicts
• Growing adoption in commercial construction
• Powerful for large, complex AV installations

Cons:

• Significant learning curve
• Expensive licensing
• Limited AV-specific features without customization
• Requires BIM-compatible project environment
• Overkill for simpler AV projects
• Time-intensive model creation

Best For:

Revit suits AV consultants and integrators working on large commercial construction projects where BIM coordination is required. Best for firms with BIM expertise collaborating with architects and MEP engineers on integrated building systems.

9. Vectorworks – Versatile Design Platform

Vectorworks is a professional CAD and BIM software offering industry-specific versions, including tools useful for AV system design, particularly in entertainment and architectural projects.

Key Features:

• Hybrid 2D/3D design environment
• BIM capabilities for building integration
• Entertainment design tools (lighting, rigging, staging)
• ConnectCAD add-on for AV system design
• Schematic layout and signal flow tools
• Equipment database management
• Rendering and visualization
• DWG compatibility

Pros:

• Versatile across multiple design disciplines
• Strong 3D visualization capabilities
• ConnectCAD provides AV-specific functionality
• Good for entertainment venues and architectural projects
• Mac and Windows compatible

Cons:

• ConnectCAD requires additional purchase
• Steeper learning curve than simpler tools
• Higher cost than entry-level solutions
• Less AV industry penetration than specialized tools
• Requires customization for optimal AV workflows

Best For:

Vectorworks works well for AV design firms that also handle architectural design, theatrical systems, entertainment venues, or event production where multi-discipline design capabilities provide value.

10. SmartDraw – Cloud-Based Diagramming

SmartDraw is a cloud-based diagramming software offering templates for various diagram types including network diagrams, floor plans, and system schematics useful for AV documentation.

Key Features:

• Cloud-based accessibility
• Extensive template library
• Automatic formatting and alignment
• Integration with Microsoft Office, Google Workspace
• Collaboration features
• Floor plan creation tools
• Custom symbol libraries
• Export to PDF, PNG, SVG, Visio

Pros:

• Very easy to learn and use
• No software installation required
• Affordable subscription pricing
• Good for quick diagram creation
• Works across all devices
• Includes AV diagram templates

Cons:

• Limited technical drawing precision
• Not a true CAD platform
• Basic AV-specific features
• No automated BOM generation
• Limited equipment libraries
• Not suitable for detailed installation drawings

Best For:

SmartDraw serves small AV businesses, consultants, and sales teams who need to quickly create basic system diagrams and presentation materials without investing in more complex CAD software.

Benefits of Using AV CAD Drawings Software

Investing in professional AV CAD drawings software delivers substantial advantages across design quality, operational efficiency, and business profitability.

1. Increased Design Accuracy

Professional CAD tools eliminate common design errors:

• Automatic port compatibility checking prevents mismatched connections
• Cable length calculations ensure proper infrastructure sizing
• Rack space validation prevents equipment fit issues
• Power requirement summation ensures adequate electrical capacity

These capabilities translate directly to fewer field issues and change orders.

2. Dramatic Time Savings

Automation features significantly reduce project timelines:

• Template-based designs enable 60-80% faster initial layouts
• Automated BOM generation eliminates hours of manual data entry
• Symbol libraries prevent redrawing common equipment
• Documentation auto-generation produces deliverables in minutes

Teams report 50-70% reduction in design and documentation time after implementing specialized AV software.

3. Professional Documentation

Consistent, professional deliverables improve client perception:

• Standardized drawing formats convey competence and attention to detail
• Clear system diagrams help clients understand proposed solutions
• Comprehensive documentation facilitates smoother approvals
• Polished proposals increase close rates and project values

4. Enhanced Collaboration

Modern cloud platforms enable seamless team coordination:

• Real-time updates keep distributed teams synchronized
• Version control prevents conflicting changes
• Role-based access maintains document security
• Client portals facilitate feedback and approvals

5. Reduced Installation Errors

Detailed documentation prevents costly field mistakes:

• Cable labels match schematic diagrams, reducing wiring errors
• Clear signal paths guide installers through complex routing
• Equipment placement drawings prevent mounting conflicts
• Connection diagrams ensure proper device configuration

Industry data shows 60-75% reduction in installation call-backs with comprehensive CAD documentation.

6. Improved Project Profitability

Efficiency gains directly impact bottom-line results:

• Faster design cycles enable more project throughput
• Reduced errors minimize warranty costs and truck rolls
• Professional proposals command higher prices
• Accurate BOMs prevent material waste and shortages

AV firms report 15-25% profit margin improvement after implementing specialized design software.

7. Knowledge Base Development

Project templates and libraries create organizational assets:

• Standardized designs for common room types
• Equipment configurations for repeated applications
• Best practice documentation for team training
• Historical project reference for future work

This intellectual capital becomes increasingly valuable as firms grow.

8. Scalability

Professional software platforms support business growth:

• Cloud infrastructure accommodates expanding teams
• Project management integration handles increased project volume
• Standardized workflows enable consistent quality as staff grows
• Automated processes prevent bottlenecks

How to Use AV CAD Drawings Software (Step-by-Step)

Understanding the typical workflow in AV CAD software helps maximize efficiency and ensure comprehensive system documentation.

Step 1: Project Setup and Planning

Initialize your project with essential information:

1. Create new project in your CAD software
2. Input client information and project details
3. Import architectural floor plans (if available)
4. Set drawing scale and units (typically 1/4" = 1' or metric)
5. Establish layer structure for different system types:
• Audio systems
• Video systems
• Control systems
• Network infrastructure
• Power distribution

Best Practice: Create project templates for common room types (conference rooms, classrooms, auditoriums) to accelerate future projects.

Step 2: Equipment Selection

Choose appropriate devices for your AV system:

1. Access the equipment library in your software
2. Search by manufacturer, product category, or specifications
3. Add selected devices to your project equipment list
4. Verify specifications match project requirements:
• Input/output counts and signal types
• Power requirements
• Mounting dimensions
• Network connectivity

Tip: With AI-powered platforms like XTEN-AV, the software can suggest compatible equipment based on project parameters.

Step 3: Create System Block Diagrams

Develop high-level system overview:

1. Place major system components on drawing canvas
2. Draw signal flow connections between devices
3. Label signal types (HDMI, HDBaseT, Dante, analog audio, etc.)
4. Add annotations explaining system operation
5. Group related subsystems logically

System block diagrams provide clients and project teams with clear understanding of overall system architecture.

Step 4: Design Detailed Schematics

Create technical drawings for installation:

1. Generate line schematics showing all device connections
2. Label every input and output port
3. Assign cable identifiers using consistent numbering
4. Specify cable types and lengths
5. Document signal routing through patch bays and matrix switchers
6. Add wire color codes where applicable

Detailed schematics serve as the primary installation reference, ensuring accurate field execution.

Step 5: Develop Rack Elevation Drawings

Plan equipment rack layouts:

1. Select rack size (typically 19-inch, various rack unit heights)
2. Place equipment in logical order (typically source equipment at top, heavy items lower)
3. Verify rack space availability (1U, 2U, 3U spacing)
4. Add blank panels and ventilation spacing
5. Include power distribution and cable management
6. Document front and rear panel connections

Rack elevations guide both equipment ordering and installation procedures.

Step 6: Create Floor Plans

Document physical installation locations:

1. Import architectural drawings as background
2. Place speakers, displays, microphones, cameras at specified locations
3. Add ceiling equipment (projectors, ceiling speakers, access points)
4. Show conduit paths and cable routes
5. Dimension critical mounting heights and clearances
6. Note viewing angles and coverage areas

Floor plans coordinate AV installation with other building trades (electrical, low-voltage, construction).

Step 7: Generate Cable Schedules

Document all system cabling:

1. Use software's automated cable schedule feature (if available)
2. List all cables with:
• Cable ID number
• Source device and destination device
• Source port and destination port
• Cable type and specifications
• Cable length (with appropriate excess)
3. Organize by system or cable type
4. Include connector types for both ends

Comprehensive cable schedules ensure correct material ordering and efficient installation.

Step 8: Create Bill of Materials (BOM)

Generate equipment and materials list:

1. Use software's automated BOM generation (platforms like XTEN-AV and D-Tools excel here)
2. Ensure BOM includes:
• Equipment quantities and model numbers
• Manufacturer information
• Unit pricing (if integrated with pricing database)
• Cable and connector quantities
• Mounting hardware and accessories
3. Export to Excel or directly to accounting/purchasing systems
4. Organize by category (audio, video, control, infrastructure)

Accurate BOMs are critical for procurement, pricing, and inventory management.

Step 9: Compile Documentation Package

Assemble complete project deliverables:

1. Organize drawings in logical sequence:
• Cover sheet with project overview
• System block diagrams
• Detailed schematics
• Rack elevations
• Floor plans
• Cable schedules
• BOM
2. Add title blocks with project information, revision dates, drawing numbers
3. Include equipment specifications and cut sheets
4. Compile installation notes and special requirements
5. Export complete package to PDF for distribution

Step 10: Review and Quality Control

Verify documentation completeness:

1. Cross-check BOM quantities against drawings
2. Verify all cables are labeled and scheduled
3. Confirm port assignments match throughout all drawings
4. Review cable types meet distance and bandwidth requirements
5. Check power calculations and circuit loading
6. Have second team member review for errors

Quality control prevents expensive field problems and change orders.

Step 11: Client Presentation and Approval

Present designs professionally:

1. Walk through system operation using block diagrams
2. Explain equipment choices and capabilities
3. Review project scope using floor plans and elevations
4. Address client questions and concerns
5. Incorporate requested changes
6. Obtain formal design approval before proceeding

Clear communication using professional CAD drawings builds client confidence and minimizes mid-project changes.

Step 12: Installation Support

Leverage drawings during installation:

1. Provide installers with complete drawing packages
2. Make drawings accessible via cloud platform (if available)
3. Use mobile access for field reference
4. Document field changes and create as-built drawings
5. Update cable labels based on actual installation routing

Comprehensive documentation accelerates installation and ensures quality results.

Comparison Table of the Best AV CAD Drawing Software

Key Comparison Factors:

Price-to-Value Ratio: XTEN-AV and D-Tools offer the most comprehensive AV-specific features justifying their pricing through automation and time savings.

Ease of Use: Visio and SmartDraw have the gentlest learning curves but lack advanced AV capabilities.

Technical Capabilities: AutoCAD and Revit provide maximum technical precision but require significant training and customization for AV workflows.

AV Specialization: XTEN-AV, D-Tools, and Stardraw are purpose-built for AV integration, while other tools require adaptation.

Collaboration: Cloud-based platforms (XTEN-AV, Figma, SmartDraw, Lucidchart) excel at team collaboration and remote work.

AI and Future Trends in AV CAD Drawing Software

The AV design software landscape is undergoing rapid transformation driven by artificial intelligence, machine learning, and automation technologies. Understanding these trends helps integrators select future-proof platforms.

1. AI-Powered Design Automation

Machine learning algorithms are revolutionizing system design:

• Intelligent equipment selection: AI recommends optimal devices based on room parameters, budget constraints, and performance requirements
• Automatic layout optimization: Software suggests speaker placement, display positioning, and microphone locations using acoustic modeling and coverage algorithms
• Design pattern recognition: AI learns from successful past projects to accelerate similar future designs
• Predictive problem identification: Systems flag potential compatibility issues, bandwidth limitations, or design flaws before they become problems

XTEN-AV leads this trend by incorporating AI-powered automation throughout its design workflow, significantly reducing manual engineering time.

2. Generative Design for AV Systems

Generative design uses AI to create multiple design variations:

• Input project constraints (budget, space limitations, performance requirements)
• AI generates multiple system configurations meeting criteria
• Designers select optimal solution from AI-generated options
• Software automatically produces complete documentation for chosen design

This approach accelerates design exploration and often identifies solutions human designers might not consider.

3. Predictive Maintenance Integration

Future AV CAD platforms will increasingly connect to building management systems and IoT sensors:

• Digital twin creation: CAD models become living representations of installed systems
• Performance monitoring: Real-time device health and system analytics
• Predictive maintenance alerts: AI predicts component failures before they occur
• As-built automation: Installed systems automatically update CAD documentation

4. Enhanced BIM Integration

AV systems are becoming fully integrated into Building Information Modeling:

• Clash detection: Automatic identification of conflicts between AV infrastructure and other building systems
• Coordination workflows: Direct data exchange between AV, electrical, mechanical, structural disciplines
• Lifecycle management: BIM models track AV systems from design through operations and decommissioning
• Digital facility management: AV documentation integrates with building management platforms

5. Augmented Reality (AR) Visualization

AR technology is transforming how AV systems are visualized:

• On-site design visualization: View proposed equipment placement overlaid on actual spaces using tablets or AR glasses
• Installation guidance: AR overlays guide technicians to exact mounting locations and cable routes
• Client presentations: Immersive walkthroughs of proposed AV systems in actual spaces
• Training applications: Interactive AR guides for system operation and maintenance

6. Natural Language Processing for Design

NLP is enabling conversational design interfaces:

• Describe system requirements in plain language
• AI interprets requirements and generates initial design concepts
• Ask questions like "What speakers work best for this conference room?"
• Software provides recommendations based on acoustic analysis and product database

7. Automated Code Compliance Checking

AI systems increasingly validate designs against industry standards:

• ADA compliance for assistive listening and accessible controls
• Building codes for electrical and fire safety
• AVIXA standards for audiovisual performance
• Cybersecurity requirements for networked AV systems

Automated compliance checking reduces project risk and ensures regulatory adherence.

8. Cloud-Native Architectures

The future of AV CAD software is decisively cloud-based:

• Platform-independent access (Windows, Mac, iPad, web browsers)
• Automatic updates without IT intervention
• Scalable computing resources for complex rendering or simulation
• Integrated backup and disaster recovery
• Subscription pricing models with lower upfront investment

9. Sustainability Analytics

Emerging AV design tools incorporate environmental impact analysis:

• Energy consumption calculations for AV equipment
• Carbon footprint reporting
• Sustainable product recommendations
• Equipment lifecycle management and e-waste reduction

As sustainability becomes a competitive differentiator, design software will increasingly quantify environmental impact.

10. Integration with Project Delivery Platforms

AV CAD software is converging with broader project management ecosystems:

• Direct data flow between design, procurement, installation, commissioning
• Real-time project dashboards showing design status, material delivery, installation progress
• Automated scheduling based on design completion and resource availability
• Client portals providing transparent project visibility

XTEN-AV exemplifies this trend by offering integrated project management alongside CAD capabilities, creating a unified platform for the entire AV project lifecycle.

Common Mistakes When Choosing AV CAD Software

Selecting the wrong AV design software wastes time, money, and creates operational friction. Avoid these frequent evaluation errors:

1. Choosing Based Solely on Price

The Mistake: Selecting the cheapest option without considering total cost of ownership and productivity impact.

The Reality:

• A $10/month basic diagramming tool that requires 10 extra hours per project costs far more than efficient specialized software
• Time savings from automation typically justify higher-cost professional platforms within 3-6 months
• Consider ROI including reduced errors, faster delivery, and higher proposal close rates

Better Approach: Calculate total cost per project including labor time, not just software subscription fees.

2. Ignoring AV-Specific Requirements

The Mistake: Assuming general CAD software or diagramming tools adequately address AV design needs.

The Reality:

• Generic tools lack AV equipment libraries, requiring manual symbol creation
• No automated cable labeling or port mapping wastes significant time
• Missing BOM generation creates manual data entry work
• No understanding of AV signal types or connectivity rules

Better Approach: Prioritize AV-specific features that directly support integration workflows.

3. Overlooking Team Collaboration Needs

The Mistake: Selecting desktop-only software when team works remotely or across multiple locations.

The Reality:

• File sharing via email creates version control nightmares
• Desktop-locked software prevents mobile access during site visits
• Lack of real-time collaboration slows project progress

Better Approach: For distributed teams, prioritize cloud-based platforms with real-time collaboration and mobile accessibility.

4. Neglecting Integration Requirements

The Mistake: Choosing software that doesn't connect with existing business systems.

The Reality:

• Manual data re-entry between design tools, CRM, accounting systems wastes hours weekly
• Disconnected workflow creates data discrepancies and errors
• Lack of integration prevents end-to-end automation

Better Approach: Map your complete technology stack and verify integration capabilities before committing.

5. Underestimating Learning Curve

The Mistake: Selecting feature-rich software without considering training requirements and adoption timeline.

The Reality:

• Complex CAD platforms may require months of training before productivity benefits materialize
• Team resistance to difficult software can undermine implementation
• Productivity may temporarily decrease during transition period

Better Approach: Balance capability with usability—consider trial periods and ensure adequate training resources are available.

6. Failing to Evaluate Vendor Stability

The Mistake: Choosing unknown vendors or unsupported software without researching company stability.

The Reality:

• Software discontinuation or lack of updates leaves you stranded
• Poor support creates productivity bottlenecks
• Small vendors may lack resources for ongoing development

Better Approach: Research vendor track record, update frequency, customer base size, and financial stability.

7. Not Testing with Real Projects

The Mistake: Selecting software based on marketing materials or demos without testing on actual project types.

The Reality:

• Software that works well for simple projects may struggle with your complex installations
• Missing features become apparent only during real use
• Workflow incompatibilities emerge during daily use

Better Approach: Request trial periods and test software with representative past projects before purchasing.

8. Ignoring Scalability

The Mistake: Choosing software adequate for current needs but unable to support business growth.

The Reality:

• User license limits restrict team expansion
• Performance issues emerge with larger project databases
• Missing advanced features required as project complexity increases

Better Approach: Select platforms that can scale with your business over a 5-10 year horizon.

9. Overlooking Mobile and Field Access

The Mistake: Not considering field technician and project manager access needs.

The Reality:

• Installers need drawing access at job sites
• Project managers require mobile visibility during site visits
• Desktop-only access creates communication delays

Better Approach: Prioritize solutions offering mobile apps or responsive web access for field teams.

10. Focusing Only on Drawing Capabilities

The Mistake: Evaluating based exclusively on CAD drawing features while ignoring workflow automation and documentation.

The Reality:

• Drawings are just one component of successful AV projects
• Proposal generation, project management, client communication equally important
• Disconnected tools create inefficiency

Better Approach: Consider complete project workflow—the best solution handles design, documentation, proposals, and project delivery comprehensively.

Benefits of Using AV CAD Drawings Software

The strategic advantages of professional AV CAD software extend well beyond simple drawing creation, impacting every aspect of integration business operations.

Operational Benefits

Standardized Workflows

• Consistent design methodology across all team members
• Repeatable processes that can be documented and trained
• Quality control through standardized templates and procedures
• Predictable timelines for design deliverables

Reduced Rework

• Accurate initial designs minimize change orders
• Comprehensive documentation reduces field questions
• Error prevention through validation rules and compatibility checking
• Clear specifications eliminate ambiguity during procurement

Knowledge Retention

• Project archives become reference library for future work
• Equipment libraries capture organizational preferences and approved products
• Design templates preserve best practices
• Staff turnover impact minimized through documented processes

Financial Benefits

Increased Project Capacity

• Complete more projects with same staff through automation
• Faster design cycles enable higher project throughput
• Parallel project execution through team collaboration features

Higher Profit Margins

• Reduced labor hours directly increase profitability
• Fewer errors minimize warranty costs and return visits
• Professional deliverables command premium pricing
• Accurate estimates prevent cost overruns

Improved Cash Flow

• Faster proposal generation accelerates sales cycles
• Accurate BOMs prevent material delays and project stalls
• Integrated project management improves billing timing

Strategic Benefits

Competitive Differentiation

• Professional documentation sets you apart from competitors using basic tools
• Faster response times win projects against slower competitors
• Advanced capabilities enable larger, more complex project opportunities
• Technology leadership attracts better clients and talent

Scalability

• Standardized processes enable team growth without quality degradation
• Cloud platforms support distributed teams and multiple office locations
• Workflow automation prevents bottlenecks as project volume increases

Client Satisfaction

• Clear documentation improves client understanding and confidence
• Accurate installations create satisfied clients and referral business
• Professional deliverables enhance brand reputation
• Transparent processes build client trust

Frequently Asked Questions

What is the best AV CAD drawings software for beginners?

For beginners, Microsoft Visio or SmartDraw offer the easiest entry points with intuitive drag-and-drop interfaces and minimal learning curves. However, if you're committed to the AV integration industry long-term, investing time to learn AV-specific platforms like XTEN-AV or D-Tools provides far greater long-term value through automation and AV-tailored features. These platforms include comprehensive training resources and support to accelerate learning. Consider starting with free trials to assess which interface feels most natural for your design thinking.

How much does professional AV CAD software typically cost?

AV CAD software pricing varies dramatically by capability level:

• Entry-level diagramming tools: $10-50/month (Visio, SmartDraw, Lucidchart)
• Mid-range AV-specific solutions: $50-150/month (Stardraw, some D-Tools packages)
• Professional AV platforms: $150-300+/month (XTEN-AV, D-Tools SI full suite)
• Enterprise CAD systems: $2,000-3,000/year (AutoCAD, Revit, Vectorworks)

Important: Calculate total cost including training time, productivity impact, and time savings from automation. A $200/month platform that saves 40 hours monthly provides far better ROI than a $15/month tool requiring extensive manual work.

Can I use AutoCAD for AV system design?

Yes, AutoCAD can be used for AV system design and many consultants and integrators do use it successfully. However, AutoCAD requires significant customization to be efficient for AV workflows:

• You'll need to create or purchase AV symbol libraries
• Cable labeling and port mapping must be done manually
• BOM generation requires separate tools or manual creation
• No AV-specific automation without custom programming

AutoCAD excels when precise technical drafting is required or when DWG compatibility with architectural firms is essential. For pure AV integration workflows, purpose-built tools like XTEN-AV or D-Tools typically provide better efficiency and value.

What's the difference between AV CAD software and general diagramming tools?

AV-specific CAD software includes features purpose-built for audiovisual integration:

AV CAD Software:

• Equipment libraries with actual AV manufacturer products
• Automatic port mapping and connectivity validation
• Cable labeling following AV industry conventions
• Rack elevation tools with proper U-space calculations
• Automated BOM generation from design data
• Signal flow tracking through complex AV systems
• Integration with AV business processes

General Diagramming Tools:

• Basic shape libraries and connectors
• Manual labeling of all elements
• No AV equipment knowledge
• Limited technical precision
• Generic template options

The difference is similar to using a general word processor versus legal contract software—both can create documents, but specialized tools dramatically improve efficiency for specific use cases.

Do I need cloud-based AV CAD software or is desktop software sufficient?

The choice between cloud and desktop depends on your business model and team structure:

Choose Cloud-Based When:

• Team members work remotely or across multiple offices
• Field technicians need drawing access during installations
• Real-time collaboration is important for project delivery
• You want automatic backups and disaster recovery
• Mobile access provides operational value
• You prefer subscription pricing over large upfront investment

Choose Desktop When:

• You work exclusively in a single office location
• Internet connectivity is unreliable at your location
• Data security policies restrict cloud storage
• You prefer one-time purchase over subscription
• Advanced CAD features not available in cloud versions

2026 Trend: Most modern AV software has moved to cloud-native architectures, as benefits of accessibility, collaboration, and automatic updates outweigh traditional desktop advantages for most integration firms.

How long does it take to learn AV CAD software?

Learning timelines vary significantly by software complexity and user background:

Basic Proficiency (creating simple diagrams):

• Simple tools (Visio, SmartDraw): 1-2 days
• Mid-range AV platforms (XTEN-AV, Stardraw): 1-2 weeks
• Professional CAD (AutoCAD, Vectorworks): 4-8 weeks
• BIM platforms (Revit): 3-6 months

Advanced Proficiency (leveraging all features efficiently):

• Simple tools: 1-2 weeks
• Mid-range platforms: 2-3 months
• Professional CAD: 6-12 months
• BIM platforms: 1-2 years

Acceleration Factors:

• Prior CAD experience significantly reduces learning time
• Formal training courses accelerate proficiency versus self-learning
• AI-powered platforms like XTEN-AV reduce technical complexity through automation
• Regular use (daily vs. occasional) dramatically impacts skill development

Investment Tip: Budget for formal training and allow productivity dip during initial adoption—the long-term efficiency gains justify the short-term investment.

Can AV CAD software integrate with my existing business systems?

Integration capability varies significantly among AV design platforms:

Highly Integrated Platforms (XTEN-AV, D-Tools):

• Direct API connections to CRM systems (Salesforce, HubSpot)
• Accounting software integration (QuickBooks, Xero, Sage)
• Project management platform connectivity (Procore, Buildertrend)
• Equipment pricing databases for automated cost updates

Limited Integration (most traditional CAD):

• File export (PDF, DWG, Excel) for manual data transfer
• No direct business system connectivity
• Copy-paste workflows between applications

No Integration (basic diagramming tools):

• Standalone applications
• Completely manual data transfer

Before selecting software, document your technology ecosystem and verify integration points that eliminate manual data entry and enable automated workflows.

What file formats should AV CAD software support?

Comprehensive file format support ensures compatibility with clients, partners, and other project stakeholders:

Essential Export Formats:

• PDF: Universal document sharing and printing
• DWG/DXF: AutoCAD compatibility for architectural coordination
• Excel: BOM and cable schedule export for procurement
• PNG/JPEG: Image embedding in proposals and presentations

Advanced Formats:

• IFC: BIM coordination on large commercial projects
• SVG: Scalable graphics for web and presentations
• Visio: Compatibility with Microsoft-centric organizations
• 3D formats (OBJ, 3DS, SketchUp): Visualization and modeling exchange

Import Capabilities:

• Architectural floor plans (PDF, DWG, image formats)
• Equipment data (manufacturer specification files)
• Product pricing (CSV, Excel from distributors)

XTEN-AV and similar modern platforms support comprehensive import/export, ensuring seamless data flow through your project workflow.

Conclusion with Key Takeaways

Selecting the right av cad drawings software represents a strategic decision that fundamentally impacts your AV integration business's efficiency, profitability, and competitive positioning. As we've explored throughout this comprehensive guide, the landscape of AV design tools in 2026 ranges from basic diagramming applications to sophisticated AI-powered platforms that automate the entire project lifecycle.

Key Takeaways:

1. Specialization Matters

Purpose-built AV software like XTEN-AV delivers dramatically better productivity and accuracy than adapting general-purpose CAD tools. The time saved through AV-specific automation, equipment libraries, and integrated workflows typically justifies the investment within months.

2. XTEN-AV Leads in Innovation

XTEN-AV stands out as the best CAD drawing software for AV system design in 2026 by uniquely combining:

• AI-powered design automation
• Purpose-built AV drawing environment (X-DRAW)
• Complete documentation automation
• Cloud-based collaboration
• All-in-one project lifecycle management

For commercial AV integrators and consultants seeking maximum efficiency and modern capabilities, XTEN-AV represents the optimal solution.

3. Match Software to Business Model

• Enterprise integrators: XTEN-AV, D-Tools, AutoCAD (with customization)
• Small-medium firms: XTEN-AV, Stardraw, Visio
• Consultants: XTEN-AV, AutoCAD, SketchUp (for visualization)
• Budget-conscious startups: Visio, SmartDraw, draw.io

4. Embrace Cloud and AI

The future clearly favors cloud-native platforms with AI capabilities. XTEN-AV's pioneering artificial intelligence integration exemplifies where the industry is heading—automated design, intelligent recommendations, and reduced manual work.

5. Consider Total Cost of Ownership

Evaluate software investment based on:

• Time savings from automation (translate hours saved to dollar value)
• Error reduction (calculate typical change order and warranty costs prevented)
• Proposal close rate improvement from professional deliverables
• Team capacity increase enabling more project throughput

6. Integration Creates Exponential Value

Software that connects design, proposals, procurement, project management, and accounting provides exponentially more value than isolated tools. XTEN-AV's comprehensive integration capabilities eliminate data re-entry and workflow gaps.

7. Invest in Training

Even the best software delivers limited value without proper training. Budget for:

• Formal training courses (vendor or third-party)
• Team learning time during initial adoption
• Ongoing skill development as software evolves
• Process documentation customized to your workflows

8. Start with Trials

Before committing to any platform:

• Request free trials or demonstrations
• Test with actual past projects
• Involve entire team in evaluation process
• Verify integration with your existing business systems
• Assess vendor support quality and responsiveness

Final Recommendations

For most AV integration companies in 2026, XTEN-AV represents the optimal investment, offering the most comprehensive AV-specific capabilities, cutting-edge AI automation, and complete project lifecycle management in a single, cloud-based platform. Its X-DRAW tool specifically addresses the unique requirements of audiovisual documentation, while its broader platform eliminates the need for multiple disconnected tools.

However, the "best" solution ultimately depends on your specific business context:

• Large established firms with CAD expertise may continue leveraging AutoCAD investments
• BIM-focused consultants on major construction projects require Revit
• Budget-conscious small businesses can start with Visio or SmartDraw while planning future upgrades
• Residential integrators may prefer D-Tools' comprehensive residential features

Regardless of which av cad drawings software you select, the critical decision is moving beyond basic diagramming tools to professional AV design software that understands your industry, automates repetitive tasks, and supports your complete project workflow. The efficiency gains, reduced errors, and enhanced professionalism quickly transform this investment from cost center to competitive advantage.

The AV integration industry continues evolving toward greater complexity, networked systems, and integrated building technology. The software tools you select today will either enable you to thrive in this evolution or struggle to keep pace. Choose wisely, invest in proper training, and leverage technology to build a more efficient, profitable, and competitive AV integration business.
